KC10DFL
KC10DFL
Hitachi

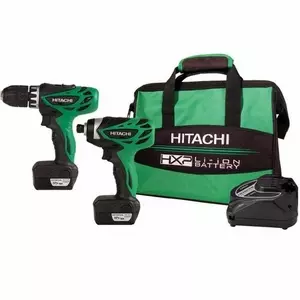

12V Peak Li-ion Drill Driver & Impact Driver Twinpack Kit
Contents:
• DS10DFL lightweight Drill Driver
• WH10DFL lightweight Impact Driver
• 2 x 1.5Ah Li-Ion Batteries
• UC10SFL 40 minute charger
• Heavy Duty Nylon Tool Bag
Explanation of 12V Peak:
Initial no-load voltage, when fully charged, peaks between 12-12.4 volts. During the battery cycle under a typical load voltage averages at 10.8 volts
DS10DFL Features:
- Impressively lightweight and compact
- 22Nm of torque for various drilling and driving applications
- Best-in-class 21+1 clutch with 21 torque settings and a drill mode for ultimate precision and control in both forward and reverse
- LED light effectively illuminates dark work spaces
- Optimized handle dimensions for a secure grip and ergonomic comfort in all hand sizes
- 10mm keyless chuck for simple bit replacements and a variety of applications
- Responsive variable speed trigger for complete control during intricate operation
- Free-standing design allows drill to stand on its own when not in use
- Lithium Ion batteries deliver steady power for the duration of every charge
- Patented charger circuitry prevents overheating and power loss
- Balanced tool weight ensures proper wrist alignment and reduces fatigue
DS10DFL Applications:
- Driving and Removing of machine screws, wood screws, tapping screws etc
- Drilling of various woods
- Drilling of various metals
WH10DFL Features:
- 95Nm Of Driving Torque for heavy applications like tightening carriage bolts, driving lags and sinking deck screws
- Drills Into Wood, Metal And Concrete. Tightens and loosens small screws, tapping screws, bolts and nuts
- Impressively Lightweight and compact
- Faster Impact Driving with a no-load speed of up to 2,500 RPM and a 3,000 BPM impact rate
- LED Light effectively illuminates dark work areas
- Optimized Handle Dimensions for a secure grip and ergonomic comfort in all hand sizes
- Quick Change 1/4" Hex chuck for simple bit replacements
- Responsive Variable Speed Trigger for precise control during intricate operations
- Free-Standing Design allows drill to stand on its own when not in use
- Patented Charger Circuitry prevents overheating and power loss
- Balanced Tool Weight for proper wrist alignment and reduced fatigue
WH10DFL Applications:
- Driving and removal of machine screws, wood screws, tapping screws etc
PRODUCT SPECIFICATION
DS10DFL:
- No load speed: 0-300/0-1300rpm
- Clutch stages: 21+1
- Drilling capacity in wood: 21mm
- Drilling capacity in steel: 10mm
- Drilling capacity in aluminium: 12mm
- Weight: 1.0kg
WH10DFL:
- No load speed: 0-2500rpm
- Capacity: M5-M12 bolts
- Tightening torque: 95Nm
- Weight: 1.0kg
- Shipping Weight: 6kg
