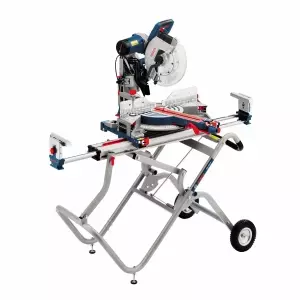

GCM 12 GDL Professional Mitre Saw + GTA2500W Mitre Saw Stand
GCM12GDL
Bosch
12" Dual Bevel Glide Mitre Saw + GTA2500W Mitre Saw Stand
With Evolutionary Performance and Revolutionary design, the Bosch GCM12GDL mitre saw has a gliding head rather than the usual sliding head and provides double bevel with huge vertical and horizontal cutting capacity.
Features:
- Extreme cutting smoothness because of innovative and maintenance free gliding system
- Integrated dual line laser supports accurate cuts
- High vertical and horizontal cutting capacity
- Top Precision Best for Wood - saw blade part of standard delivery
- Quality components and effective dust control make seeing the cut line easy every time
- Robust construction, i.e. does not need to be adjusted during regular use
- Kerf adjustment (width of lines) according to thickness of sawblade used
- Eliminates rails to save up to 30 cm workspace; work right up against a wall in hallways or workshop
- All mitre and bevel adjustments are from the front of the tool, there is no need to reach behind the saw
- Efficient dust extraction due to optimised suction spouts
- Pull-out material supports integrated on the right and left with integrated length stop
- Integrated carrying handle for easy transport
Axial Glide System:
- Smooth 'Glide Action' - Impermeable sealed bearings provide infinitely smooth and effortless blade travel, no matter the application, material or work environment, for the life of the tool
- Precise geometrical interaction with system components including long-life high precision machined fences, detents, mitre/bevel settings, etc
- 'Zero-Maintenance' Guarantee - Robust cast aluminum arm and sealed bearings will never require maintenance
Comes with:
- 72 tooth blade
- Dust bag
GTA 2500W Features:
- Innovative design:
- Uses the weight of the saw plus gravity to take the strain out of set up
- One-step set up:
- Two easy release handles
- Reduces time spent setting up and breaking down equipment.
- Universal; strong and safe tool mounts designed for rapid release of the mitre saw
- Built in extending material supports with easily adjustable repetitive stops
- Convenient transport of table saw over any distance:
- Pneumatic wheels for ease of movement over jobsite terrain
- Safer more well balanced construction
- Adjustable material supports and repetitive stops are built in
- High Build Quality:
- Strong but lightweight 1.5 mm tube steel construction
- Robust aluminium extending material supports
- 8" pneumatic tyres for the roughest terrain
- Intelligent design:
- Rapid-release universal mitre saw mounts
- Adjustable levelling feet for stability on uneven surfaces
- Extension material supports built in
- Secure and space saving storage of the stand plus machine
Product Specification
GCM12GDL
- Power (W): 2000
- Motor Speed: 3,800
- Max. Miter angle: (L/R) 52° / 60°
- Max. Bevel Angle: (L/R) 4r 14r
- Laser: Yes
- Trenchcutting: Yes
- Softstart: Yes
- Variable Speed Control: Yes
- Motor break: Yes
- Pull system: Arial Glide System Rails
- 0° Mitre / 0° Bevel: 104/110 x 341 mm* (*110mm with spacers)
- 45° Mitre / 0° Bevel: 104/110 x 240 mm* (*110mm with spacers)
- 0° Mitre / 45° Bevel 51 x 341 mm
- 45° Mitre / 45° Bevel 51 x 240 mm
- Sawblade diameter: 305
- Number of teeth: 72
- Dimensions (L D H): 790/565/610 mm
- Weight (kg): 32.1
GTA2500W
- Wheel Diameter: 8" (203 mm)
- Tire Tube Size: 1-1/4" (38 mm)
- Axle Construction: 1616 mm
- Stand Composition: Extruded Aluminum and tubular steel
- Height of Stand: 864 mm
- Width of Stand: 711 mm
- Weight of Stand: 41 kg
- Extended Length: 1220 mm
- Material Height Supports: Yes
- Material Height Supports Width: 112 mm
- Universal Mounts: 2 mounts constructed of formed sheetmetal
- Tool Mount Fast-Lock Mechanism: Yes
- Material Stops: Yes
- Rail Extension Locks: Yes
- Left/ Right Telescoping Out-feeds: Yes
