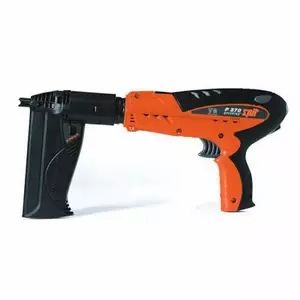

Powder Actuated Disc Cartridge Tool
Fully automatic Spitfire P370, the professional's choice for shot fired fixings into steel, concrete and masonry.
Energy absorbing damper
Automatic piston return
Soft grip
Adjustment magazine
Versatile power adjustment
Applications
Insulation panels, composite decking to steel, kicker plates, timber sole plates, fire protection brackets, brick ties, dry lining track, sheeting, steel mesh, formwork spacers, metal lathing, waterproofing/drainage, grid flooring (adapter kit required).
Kit includes:
- Spitfire P370 with Magazine
- Single shot adaptor
- High impact lightweight carry case
- Safety goggles to EN166:B
- Cleaning cloth
- Cleaning brushes
- Lubricating oil
- Push rod
- Stabiliser
- Instruction manual
Weight: 2.8kg
Length: 455mm
Pin capacity: 10 pins - 1 strip
Impact force: 350 J
Actuation pressure: 17kg
Overdrive: 36mm
Cycle rate: 1 pin/2 seconds
Rubber spring life: Up to 5000 shots
Fastener length: 15 - 90mm (Pins over 70mm require pre-hammering or adapter kit)
Electro galvanising: 7 - 15 microns (high grade steel)
