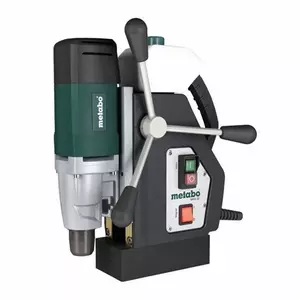

Product Specification
- Torque 50 Nm
- Maximum drilling diameter:
- With core drill 32 mm
- With spiral drill 13 mm
- Maximum drilling depth 50 mm
- Magnetic stand:
- Maximum stroke 160 mm
- Dimensions of the magnet base 84 x 168 mm
- Rated input power 1.000 W
- Output power 520 W
- Idle revolutions 700 /min
- Revolutions at rated load 450 /min
- Bit retainer Weldon shaft 19 mm (3/4")
- Height (including motor) at:
- Carriage lowest position 370 mm
- Carriage top-most position 480 mm
