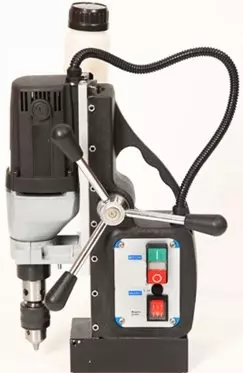

MAX 35/50 Metal Core Drilling Machine
17700
Alfra
Features:
- Very compact size and lightweight design which comes in handy for overhead use
- Easy change chuck - nothing needs to be removed to insert it
- The Alfra Max 35/50 is capable of drilling up to 35mm in both long and short cutters
- It has all the features of the Alfra machines including adjustable motor, high magnetic adhesion and a powerful 1200w motor but at an excellent price
Comes With:
- Transport Case
- Safety Belt
- Allen Key
- Drill chuck with adapter
- Operation Manual
Product Specification
Capacity:
- Core Drill:12-35 mm
- Cutting Depth:25 or 50 mm
- Twist Drill:1.5 - 13 mm DIN 338
- Countersinking:10-40 mm
Technical Data:
- Capacity: 1200 Watts
- 1-speed gearbox: 595 rpm
- Arbor: 19mm Weldon Direct Arbor
- Coolant Supply: Integrated, automatic
- Motor: Adjustable in height
- Stroke: 190 mm,range 115 - 295mm
- Voltage: 110 & 230 V 50/60 Hz
- Magnetic adhesion: 13,000 N
- Magnet Foot: 80 x 160 x 50mm
- Type of Magnet: Rigid
- Weight: 13.5 kg
