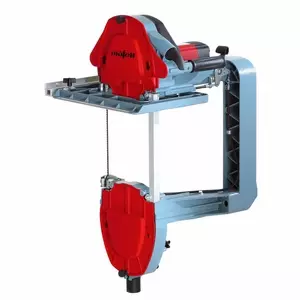

The Z 5 Ec portable bandsaw is the innovative successor to the legendary Z 3. Owing to a high-output motor and magnesium die-cast components, it's persuasive benefits include reduced weight (13.7 kg), enhanced performance, higher torque and excellent handling.
Exclusive with ball bearing saw band guidance for excellent band running and thus for optimum cutting. Maximum 8mm saw bands for optimum flexibility when curving and profiling purlins and rafters.

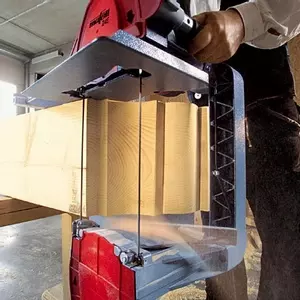

The Z 5 Ec offers an impressive cutting depth of 305mm (12 in.).
The precision that typifies MAFELL portable bandsaws enables the Z 5 Ec to execute extremely clean and perfectly square cuts.
The cooling air of the high-performance motor is utilized to blow away dust from the mark. As a consequence, chips are kept well away from your head and you maintain a clear view of the mark at all times.
Advantage for usage
- The back-toothed blade facilitates retraction from the cut, which is especially easy if the blade is locked by the mechanical brake.
- The unique tilting blade guide allows right-angle cuts to be made up to 90mm (3 9/16 in.) deep without the opposite side of the blade touching the wood, e.g. when cutting lapped joints.
- With a spring-mounted and tensioned idler wheel, changing blades is an easy and quick procedure.
- With voltage loss switch for protection against uncontrolled reconnection after a power interruption.
Supplied with:
1 Saw band, 8mm (5/16 in.) wide, 4 teeth per inch, with front and rear cutting teeth
1 Saw band, 6mm (1/4 in.) wide, 4 teeth per inch
1 Saw band, 8mm (5/16 in.) wide, 4 teeth per inch
1 Handle for two-man operation
1 Parallel guide fence
1 Mains cable 10m (32.8 ft)
