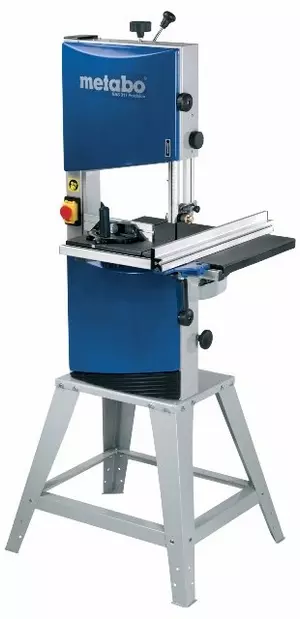

BAS 317 PRECISION PACKAGE

Supplied as standard:

• A6 universal band saw blade
• Stand
• Parallel guide/ripping fence
• Mitre guide
• Precision three-pulley guide
• Suction adapter (suitable for Ø 44, 58, 100 mm)

SPECIFICATIONS

• Dimensions L x W x H             665 x 795 x 1.600 mm

• Support surface                       548 x 400 mm

• Working height without stand    510 mm

• Working height with stand        985 mm

• Saw tabel swivel range -2 - 45 °

• Cutting height                          165 mm

• Passage width                         305 mm

• Cutting speed                          370/800 m/min

• Saw belt length                        2.240 mm

• Saw belt width                         6 - 20 mm

• Mains voltage                          230 V

• Rated input power                    0,9 kW

• Output power                           0,57 kW

• Weight                                    70,5 kg

BAS 317 - METABO TIP!

"Excellent workshop machine. Band Saw set up is one key area to accurate cutting. Take extra care and attention here."
