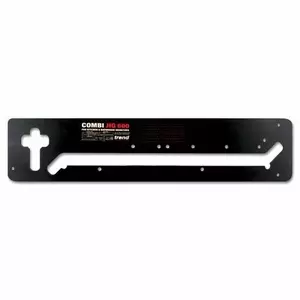

Worktop Jig 600mm

A worktop jig, designed to enable all 1/2 inch shank plunge routers to cut precise butt & scribe joints in postform workstops.

• Machined from hardwearing solid laminate.
• Will produce a joint in 15 minutes including setting-up time.
• Facilities to cut various widths of board and thicknesses up to 42mm.
• Integral panel bolt connector recessing template with easy spanner access.
• Width setting stop for accurate positioning.
• Supplied with clear & comprehensive instructions for use.
• A single male and female template in 10mm solid laminate.
• Offset widths 225,300,325,400,500,600 & 616mm. Integral single bolt recess slot for connecting bolts.
• Three alloy location bushes.

• Jig requires:
• A portable plunge router with 12.7mm (1/2 inch) shank capacity and minimum 1300 watts.
• A template guide bush with 30mm outside diameter.
• A TCT router cutter with 12.7mm (1/2 inch) diameter and 50mm (2 inch) cut length.
• Two 100mm (4 inch) throat clamps.

Includes:  3 x Location Bushes

Specifications
Length 845 mm Width 190 mm Thickness 10 mm Weight 1.8kg
