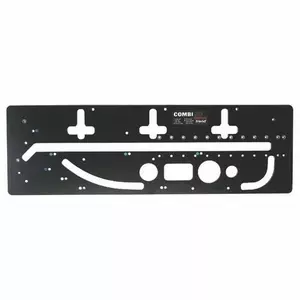

Worktop Jig 1000mm

For up to 1000mm wide worktop now with cable tidy insert & circular hinge cut apertures.

• A single male and female template in 16mm solid laminate.
• Facility to join boards from 450mm to 1000mm wide.
• Facility to cut 22.5 degree mitre corners for hob units.
• Intergral template slots for rounding and mitring of peninsular worktop corners for cable tidy inserts and a circular concealed hinge aperture and 3/4 inch BSP holes for mixer taps.
• Three alloy location bushes and a width-setting stop.
• Colour coded pin location for quick and easy use.
• Three bolt recess slots for connection bolts.
• Cuts out of square joints (max. 3 degrees).

• Jig requires:
• A portable plunge router with 12.7mm (1/2 inch) shank capacity and minimum 1300 watts.
• A template guide bush with 30mm outside diameter.
• A TCT router cutter with 12.7mm (1/2 inch) diameter and 50mm (2 inch) cut length.
• Two 100mm (4 inch) throat clamps.

Includes:

1 x Length Stop 3 x Location Bushes
