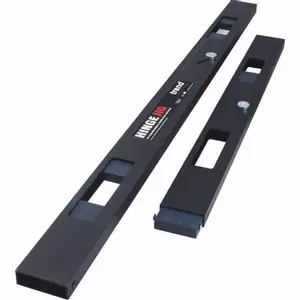

A two-part aluminium hinge jig portable template set designed for recessing hinges in wooden doors & frames.
- It is easy to use with minimal setting-up time, completing the job both accurately & quickly.
- Used on-site & in joinery shops to increase productivity with excellent results.
- Four apertures for fire door requirements.
- No need for marking out in the conventional way.

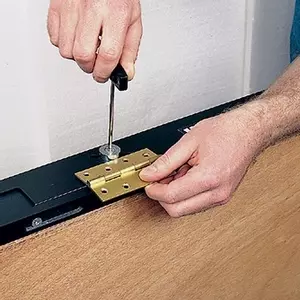

- Quick & simple to set-up as the hinge is used as the pattern.
- Clean & accurate recesses are achieved every time. Suitable for timber based doors & square butt hinges.

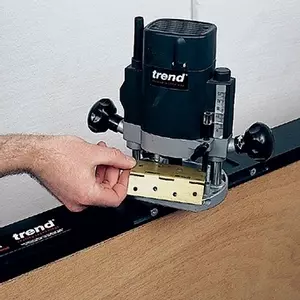

- Use with a light duty router with 1/4 inch collet.
- Long reach router cutter required, 12mm diameter with 70mm overall length.
- Angled position slots to prevent creep.
Includes:
- 4 x Apertures

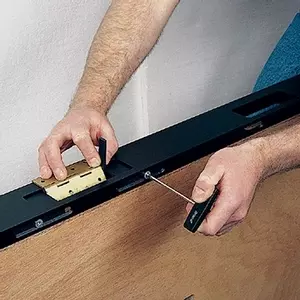

- 2 x Bradawls with spacer
- 1 x 16mm guide bush
- 1 x T-Handle hex key
- 1 x 4mm spacing gauge
- 1 x Fabric storage case
