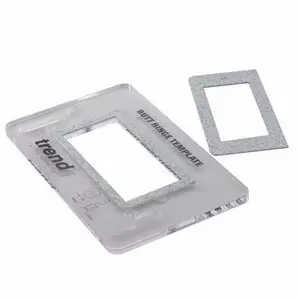

A routing template that allows a router to create a hinge recess on a door.
- Made from clear 8mm thick plastic.
- Includes metal templates for 75mm and 100mm butt hinges.
- Magnets in template frame to hold templates.
- Cuts rounded corners which can be removed with a corner chisel or chisel.
- Use on doors from 35mm to 44mm thick.
- Requires 12mm diameter cutter and 30mm guide bush.
- A user made batten 44mm x 34mm x 450mm is also needed.
Specifications:
Size: 214mm x 135mm x 8mm
